Garage Door Parts
Garage Door Parts connect the sections of the garage door together and provide the travel mechanism and counterbalance to allow the sections to move above the garage door opening.
The parts that join the sections together and allow them to pivot are called hinges. The end hinges serve the dual purpose of carrying the garage door rollers as they travel through the vertical tracks and overhead in the horizontal garage door tracks. Wider garage doors are supported with struts to prevent the sections from sagging or buckling.
The tops and bottoms of garage doors have fixtures to carry the rollers. These parts are called top fixtures and bottom fixtures. These and all the other parts are connected with fasteners.
The counterbalance system comprises the garage door parts that lift the door above the opening. The lift is accomplished with cables attached to the bottom fixtures of the door at one end and to the cable drums at each end of the shaft above the door.

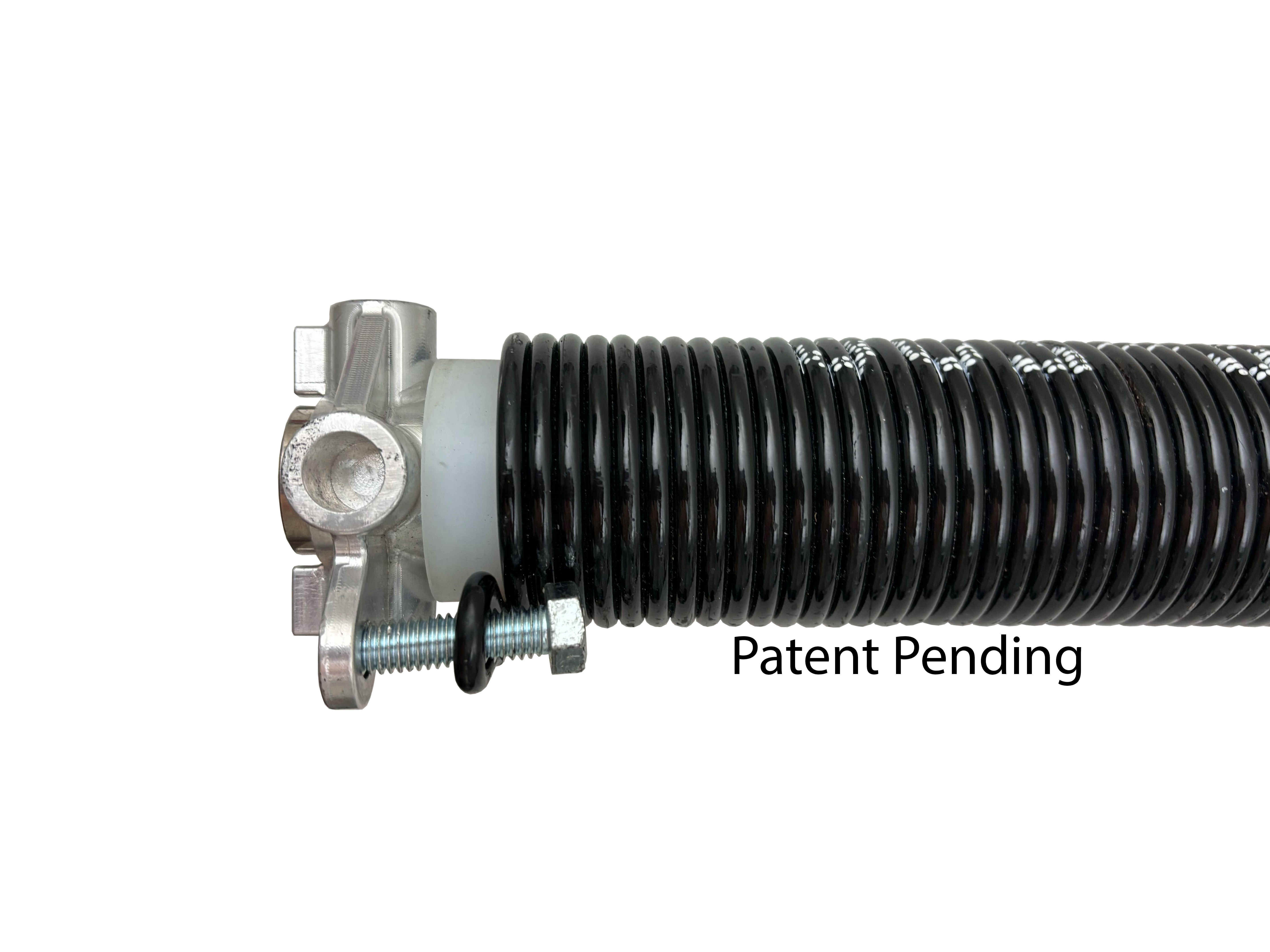

The parts providing the counterbalance torque consist of the torsion springs, cones, end bearing plates, center support brackets, shafts and couplers. One end of each spring is secured to a bracket fastened to the jamb. The other end of the torsion spring is wound and secured to the shaft with the set screws of the winding cone. The torque is transferred through the shaft to the cable drums and on to the cables on each side of the garage door.
Extension spring parts differ from the hardware used on torsion spring assemblies. The springs stretch as the garage door closes and pull on cables that are supported by pulleys. Extension spring parts provide a balanced system with the pull of the springs against the weight of the door.
Additional garage door parts include the weatherstripping to insulate the perimeter of the door, with astragal secured to the bottom and stop molding on the sides and top of the opening. Windows provide light and visibility. Garage door exhaust ports allow car engines to run in the garage while routing fumes through the exhaust hoses. Garage door locks and handles allow for manual operation, while openers controlled by remote transmitters and keypads are the preferred choice of operation.
Numerous innovations have driven the industry since Overhead Door Corporation manufactured their first garage door and all the parts to make it work. Old timers remember the tube-powered radio garage door transmitters. In recent decades Wayne Dalton developed the TorqueMaster Torsion Spring System and Clopay manufacturers the EZ-Set hardware and for safety and for reducing some of the tools necessary for winding or stretching the garage door springs. Industrial spring has developed the Spring King system for the same purposes.
In the early years most garage doors were made of wood; today most are made of steel. Many parts for garage doors have retained their design for almost a century.
